FRP

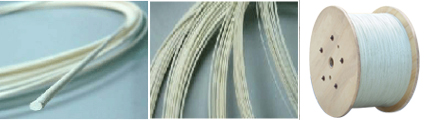

FRP(Fiber Glass Reinforce Plastic)
STRENGTH MEMBER FOR OPTICAL FIBER CABLE
FEATURES OF NON-METALLIC FRP STRENGTH MEMBER FOR FIBER OPTIC CABLES

Typical Properties:
Insensitive to the lightning strike, suitable for the area with frequent lightning and rain.
Free from the induction interference, can be laid and installed close to the power line and device.
No harmful gas, which will affect the transmission of the optical fiber , will be given off from the corrosive metal.
FRP strength member has a high strength and light weight.


Technical Data:

  Items

Unit

Index/Value

  Appearance

Colour well-distributed,none crack,
none needle,feel smooth by hand

  Diameter tolerance

%

2

  Density

g/cm3

2.05~2.15

  Tensile strength

Mpa

1450

  Tensile modulus of elasticity

Gpa

50

  Elongation at break

%

4

  Flexural Strength

Mpa

1500

  Flexural modulus

Gpa

50

  Water-absorption

%

0.1

  Coefficient of linear thermal expansion

1/

810-6

  Heat shrinkage

%

0

  Minimum bending radius(40D,205)

No bur,cracks and break,feel smooth and
straight as original

  High temperature bending test
  (50D,1001,120h)

No bur,cracks and break,feel smooth and
straight as original

  Low temperature bending test
  (50D,-401,120h)

No bur,cracks and break,feel smooth and
straight as original

  Twisting test(3600/m)

No-emulsification








Standard Delivery details:
* Available diameter: 0.45~5.00mm (0.45; 0.70; 0.90; 1.00; 1.20; 1.30; 1.40; 1.50; 1.60; 1.70; 1.80; 2.00; 2.10; 2.25;2.30; 2.40; 2.50; 2.60; 2.65; 2.70; 2.80; 2.90; 3.00; 3.20; 3.50; 3.70; 4.00; 4.50; 5.00;)
* Diameter(0.45~3.00mm) standard delivery length25km
* Diameter(3.00~5.00mm) standard delivery length15km
* Joints free
* FRP products are supplied with reels or drums made of wood.

Application: FRP reinforced strength member used for optical fiber cable.
Other specifications can be designed according to your special request.
