Galvanized Steel Wire



I.
Types & Performance Index of Galvanized Steel Wire:
Nominal Diameter
(mm)
Tensile Strength
(MPa)
Elongation not less than
Lo=200mm
0.5
350~540
12
0.8
1.0
1.2
1.5
2.0
2.5
3.0
4.0
4.5
ExecutiveStandard: GB346-84,GB3082-84

Applications: Suitable for telegram, telephone, optical fibre, communication cable, galvanized low carbon steel wire for armouring cables

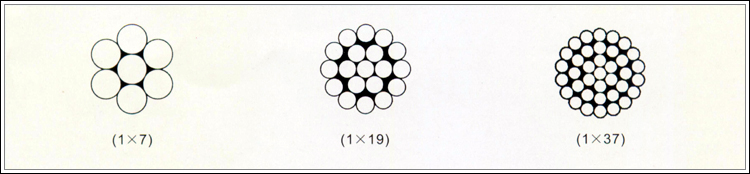

II. Types & Performance Index of Round Galvanized Steel Wire Rope  1ˇÁ7 1ˇÁ19 1ˇÁ37

Construction
WireDiameter (mm)
Guy RopeDiameter(mm)
Guy
Rope Section(mm2)
Tensile Strength of Rope(MPa)
Weight
of Zinc Coat
(g/m2)
Approx.Weight
(kg/100m)
1370
1470
1570
Total Breaking Load of Wires-not less than(kN)
1*7
1.00
1.20
1.40
1.60
1.80
2.00
2.30
2.60
2.90
3.00
3.50
3.80
4.00
3.0
3.6
4.2
4.8
5.4
6.0
6.9
7.8
8.7
9.6
10.5
11.4
12.0
5.50
7.92
10.78
14.07
17.87
21.99
29.08
37.17
46.24
56.30
67.35
79.39
87.95
7.54
10.85
14.77
19.28
24.40
30.13
39.84
50.92
63.35
77.13
92.27
108.76
120.64
8.08
11.64
15.85
20.68
26.18
32.32
42.75
54.63
67.97
82.76
98.98
116.68
129.28
8.64
12.43
16.92
22.09
27.96
34.52
45.66
58.41
72.66
77.76
105.84
124.76
138.24
185
185
185
200
215
230
230
230
230
230
245
260
260
4.37
6.29
8.56
11.17
14.14
17.46
23.09
29.51
36.71
44.70
53.48
63.04
69.92
1*19
1.60
1.80
2.00
2.30
2.60
2.90
3.00
3.50
3.80
4.00
8.0
9.0
10.0
11.5
13.0
14.5
15.0
17.5
19.0
20.0
38.20
48.35
59.69
78.94
100.88
125.50
134.31
182.81
215.49
238.77
52.33
66.24
81.78
108.15
138.20
171.93
183.96
250.39
295.15
327.04
56.15
71.07
87.74
11S.04
148.29
184.48
197.37
268.64
316.67
350.88
59.97
75.91
93.71
123.74
158.39
197.05
270.87
287.02
338.33
374.88
200
215
230
230
230
230
230
245
260
260
30.40
38.49
47.51
62.84
80.30
99.90
106.92
145.53
171.55
190.08
1*37
1.60
1.80
2.00
2.30
2.60
2.90
3.00
3.50
3.80
4.00
4.20
4.40
11.2
12.6
14.0
16.1
18.2
20.3
21.0
24.5
26.6
28.0
29.4
30.8
14.07
17.81
21.99
29.08
37.17
46.24
49.48
67.35
79.39
87.96
96.98
106.44
19.28
24.40
30.13
39.84
50.92
63.35
67.79
92.27
108.76
120.51
132.86
145.82
20.68
26.18
32.33
42.75
54.64
67.97
72.74
99.00
116.70
129.30
142.56
156.47
22.09
27.96
34.52
45.66
58.36
72.60
77.68
105.74
124.64
138.10
152.26
167.11
200
215
230
230
230
230
230
245
260
260
260
260
59.70
75.60
93.30
123.00
158.00
196.00
210.00
286.00
337.00
373.00
411.00
452.00

Executive Standard: GB1179-1999.
Applications: Suitable for hanger, hang, communication cable, overhead power line and fixing subject etc.
